The current Linux scheduler has been designed and optimized to be very fast and have a low I/D cache footprint. Inside the schedule() function the fast path is kept very short by moving less probable code out :

    if (prev->state == TASK_RUNNING)
        goto still_running;
still_running_back:
    (fast path follow here)
    return;

still_running:
    (slow path lies here)
    goto still_running_back;

and this is achieved very well as it's shown in the warm cache cycle counter test that follow. The same things could be said for the cache line alignment of critical fields inside the task struct to reduce the number of cache loads/invalidations. While the level of optimization of the current scheduler code is hardly improvable the algorithm that lies behind does not scale very well when the load onto the run queue starts to increase. This because the current code :

[kernel/sched.c]
    list_for_each(tmp, &runqueue_head) {
        p = list_entry(tmp, struct task_struct, run_list);
        if (can_schedule(p, this_cpu)) {
            int weight = goodness(p, this_cpu, prev->active_mm);
            if (weight > c)
                c = weight, next = p;
        }
    }

loops inside the whole list of runnable task and, being the fast path code length very short, the percentage added on the schedule() cost for each loop is not irrelevant.
A lot of tentatives have been done to achieve a better scheduler scalability under high load while keeping untouched the cost of the execution ( in terms of speed and I/D cache footprint ) of the current one when the load is low. The reason of this "maniacal" focus on the scheduler performance with low/standard loads is because, and it's hard to not agree, these are the 90% of cases out there. In the last few years the computer market scenario is changed, the price of SMP systems dropped significantly and the needs of a better Linux scalability on SMP machines is become a must. The Linux adoption done by big computer system manufacturers that use it on large SMP machines ( and NUMA ) increased the need of a more scalable kernel scheduler. Enormous improvements has been done to achieve a better scalability and the initial Big Lock that ruled the initial SMP implementation is spinned less and less while the kernel version number increase. The most critical paths have now their own spinlock aiming at a higher parallelism inside the kernel code. The IRQ distribution between CPUs increased the number of events that can be handled simultaneously, increasing the potential load on the scheduler subsystem. Besides the nature of the algorithm, that is not optimal when the run queue length peak up, there is the presence of a big ( from a scheduler point of view ) runqueue_lock that forces the scheduler code execution to be synchronous. It is not hard to show, using a cycle counter ( a kernel patch is available in Links[2] ), that the effect of a slow path ( the loop, executed with the lock held ) together with the presence of a single, big lock impact the scheduler perfomance in a significant way on SMP systems. Another less than optimal behavior of the current SMP scheduler is the way it spins around tasks among CPUs in the hope to achieve, in this way, the maximum CPU utilization. The current method of moving processes among CPUs could be valid if 1) the cost of move ( in terms of cache footprint ) would be zero 2) the speed of the move would be infinite. Modern CPUs have, and will have even more, very fast cores that give us strong performance if the CPU finds the data it needs inside the L1/L2 cache while it becomes a "pain in the butt" when it has to talk to external memory through the conventional bus. In the future this scenario is going to be even more true with CPU manufacturers promising 10-20GHz cores while the prospective outside ( the CPU ) are not going to be so outstanding. The presence of increasing quantities of L1 cache to separate the core from the external memory bus will make even more precious the act of preserving process locality and cache "image". The hypothesis that the current scheduler use is based on the assumption that the distance/metric between CPUs is small/low and this concept is false and is going to be even more false with the next generation of SMP systems in which high speed cores/caches will be connected by a bus, whose speed cannot increase without turning the computer in a radio station. So, a primary goal for a next generation SMP scheduler, should be the try to preserve the CPU I/D cache footprint of a process as more as possible. The current scheduler try to statically estimate the cost-of-move by
adding "weight" to the goodness() calculation :

[kernel/sched.c]
static inline int goodness(struct task_struct * p, int this_cpu, struct mm_struct *this_mm)
{
    int weight;

 ...
#ifdef CONFIG_SMP
        /* Give a largish advantage to the same processor...   */
        /* (this is equivalent to penalizing other processors) */
        if (p->processor == this_cpu)
            weight += PROC_CHANGE_PENALTY;
#endif
 ...
    return weight;
}

This can lead to wrong move decisions because a freshly scheduled-out cpu-bound process might see its cache image trashed by an incoming task arriving from another cpu. Another undesired behavior of the current scheduler happens when an odd number of cpu-bound tasks N are run on a M way SMP system with N > M. In this case the cpu bound tasks are rotating between the CPUs by trashing each other cache footprint. This behavior is easily reproducible by using the LatSched kernel patch together with the  schedcnt  and  cpuhog  tool that are available in Links[2], running :

# schedcnt -- cpuhog --ntasks N

and looking at the process migration flow. The request of infinite speed ( of the process move ) comes into play because the current scheduler act as an infinite feedback system. When the current scheduler decide the process CPU target, it analyzes the status of the system at the current time without taking in account the status at the previous time values. But the feedback that is sent ( IPI to move the task ) take a finite time to hit the target CPU and, meanwhile, the system status changes. So it's going to apply a feedback calculated in time T0 to a time Tn, and this will result in system auto-oscillation that is perceived as tasks bouncing between CPUs. This is kind of electronic example but it applies to all feedback systems. The solution to this problem, excluding a zero feedback delivery time, is 1) lower the feedback amount, that means, try to minimize task movements 2) a low pass filter, that means, when We're going to decide the sort ( move ) of a task, We've to weight the system status with the one that it had at previous time values. So, another design goal for a modern SMP scheduler, should be to try to avoid process moves as more as possible. To summarize the design goals for a more scalable scheduler should be :

1) Do not impact the performance on UP or light loaded systems
2) Reduce the cost of the full runqueue goodness calculation loop
3) Remove the big runqueue_lock to improve parallelism
4) Minimize process moves through CPUs

The proposed implementation uses a runqueue-per-cpu scheduler where, inside each CPU, the scheduler code is exactly the same of the current one. The big runqueue_lock has been substituted by locks that protects CPU run queues. By having separate run queues the length/cost of the goodness() loop has been divided by N ( N == number of CPUs ) and the presence of per-runqueue locks gives the scheduler a full parallelism between the CPUs. The removal of an high frequency contention lock like runqueue_lock has the other positive effect to drastically reduce the cache ping/pong between CPUs and the associated coherency traffic. The cost of the schedule() on UP/light-loaded system is going to be the same because the scheduler uses the same code ( inside each run queue ) of the old one. The PROC_CHANGE_PENALTY disappear because our default is to not move a task and the cost of reschedule_idle() ( that now might lead to an expensive idle discovery loop ) has been cut. The cut of reschedule_idle() is going to have a big impact because this function is basically called at every wake_up() and inside the __schedule_tail() of a still running process, with the big runqueue_lock held. The call to the reschedule_idle() done in __schedule_tail() has been completely removed achieving a shorter path respect to the current design. Provided that this kind of implementation achieve points 1, 2 and 3, how can the number of moves be minimized by keeping a substantially balanced system ? The proposed implementation ( right now ) uses two ways to try to keep the system quite balanced without swapping processes around like crazy. The first one is done at process creation time ( do_fork() ) that try
to find the more unloaded CPU to assign to  p->processor :

[kernel/fork.c]
int do_fork(...) {
 ...
#ifdef CONFIG_SMP
    p->processor = clone_flags & CLONE_PID ? current->processor: get_best_cpu();
#endif
 ...

[kernel/sched.c]
int get_best_cpu(void)
{
    int nr, best_cpu, this_cpu = smp_processor_id();
    int min_nr_running, cpu_running, cpu_processes, min_nr_processes;

    best_cpu = this_cpu;
    min_nr_running = atomic_read(&qnr_running(this_cpu));
    min_nr_processes = atomic_read(&qnr_processes(this_cpu));
    for (nr = 0; nr < smp_num_cpus; nr++) {
        if (nr == this_cpu) continue;
        cpu_running = atomic_read(&qnr_running(nr));
        if (cpu_running < min_nr_running) {
            min_nr_running = cpu_running;
            min_nr_processes = atomic_read(&qnr_processes(nr));
            best_cpu = nr;
        } else if (cpu_running == min_nr_running &&
                (cpu_processes = atomic_read(&qnr_processes(nr))) < min_nr_processes) {
            min_nr_processes = cpu_processes;
            best_cpu = nr;
        }
    }
    return best_cpu;
}

This function is executed without held locks and assign the less loaded CPU to the newly created task. The other form of balancing is done inside the idle task, when the idle is scheduled-in by a becoming-idle CPU :

[arch/*/kernel/process.c]
void cpu_idle (void)
{
    /* endless idle loop with no priority at all */
    init_idle();
    current->nice = 20;
    current->counter = -100;

    while (1) {
        void (*idle)(void) = pm_idle;
        if (!idle)
            idle = default_idle;
        while (!current->need_resched)
            idle();
        schedule();
        check_pgt_cache();
#ifdef CONFIG_SMP
        runqueue_balance(IDLE_RQBALANCE);
#endif  /* #ifdef CONFIG_SMP */
    }
}

The function runqueue_balance() try to find the more loaded CPU and try to steal a process from there :

[kernel/sched.c]
static inline int try_steal_task(int src_cpu, int dst_cpu)
{
    int res = 0;
    unsigned long flags;
    struct task_struct *tsk;
    struct list_head *head, *tmp;

    spin_lock_irqsave(&runqueue_lock(src_cpu), flags);
    head = &runqueue_head(src_cpu);
    list_for_each(tmp, head) {
        tsk = list_entry(tmp, struct task_struct, run_list);
        if (can_schedule(tsk, dst_cpu) && !tsk->move_to_cpu) {
            tsk->move_to_cpu = dst_cpu + 1;
            res = 1;
            break;
        }
    }
    spin_unlock_irqrestore(&runqueue_lock(src_cpu), flags);
    return res;
}

int runqueue_balance(int mode)
{
    int nr, crun, this_cpu = smp_processor_id(), max_nr_running = 0, max_cpu = 0;

    for (nr = 0; nr < smp_num_cpus; nr++) {
        if (nr == this_cpu) continue;
        if ((crun = atomic_read(&qnr_running(nr))) > max_nr_running) {
            max_nr_running = crun;
            max_cpu = nr;
        }
    }
    if (max_nr_running > (atomic_read(&qnr_running(this_cpu)) + 1))
        try_steal_task(max_cpu, this_cpu);
    return 0;
}

This is a very simple function that loops without held locks and ( in this implementation ) if the maximum found run queue length is greater than the run queue of the current CPU plus one, it tries to steal a process. By stealing a task that is currently inside the source CPU run queue increase the probability that the selected process is CPU bound. Since the speed of this function is not too critical, better implementations could be coded to try to keep in account cache localities and friends. Another form of balancing could be included in try_to_wake_up() in case the task's CPU run queue length goes above a certain limit, by calling an idle-discovery and wakeup function. But the proposed scheduler, as is, achieve a very good balancing by only using the get_best_cpu() at do_fork() time and the runqueue_balance() at cpu_idle() kicks in. The actual move of the process is done in one of the slow paths of schedule() by doing :

[kernel/sched.c]
#ifdef CONFIG_SMP
    if (next->move_to_cpu)
        goto cpu_migrate;
cpu_migrate_back:
#endif  /* #ifdef CONFIG_SMP */

This kind of solution, instead of a direct move inside runqueue_balance(), has been chosen because the "next" tasks that is selected is probably the one that has been absent from the CPU for the longer period of time, hence having the lower cache footprint on its current CPU. Another optimization has been added to the proposed scheduler and it's the concept of "CPU History Weight". The current scheduler does not keep in account that a CPU bound task that is currently scheduled-out should have an advantage-weight over the other ones because it's the one that probably have the more "convenient" cache image. The patch tracks the number of jiffies that a task run as :

JR = Jout - Jin

where Jin is the jiffies value when the task in kicked in and Jout is the time when it's kicked out. In a given time the value of the footprint is :

W = JR > (J - Jout) ? JR - (J - Jout): 0

where J is the current time in jiffies. This means that if the task is run for 10 ms, 10 ms ago, it's current weight will be zero. This is quite clear because the more a process does not run the more footprint will lose. The choice of jiffies against CPU dependent performance counter is because 1) jiffies are in the same "measure unit" of weight 2) their resolution is enough to catch CPU bound tasks 3) machine integer code is cheaper than double-integer one 4) there's no CPU dependency. This method is not going to affect the traditional high priority given to I/O bound tasks because the presence of CPU bound ones will force an higher counter recalculation frequency that add "weight" to the out-of-runqueue I/O bound processes. The test these numbers refer to have been done on an Athlon 1GHz 256Mb RAM ( UP system ) and a dual PIII 733MHz 256Mb RAM ( 2W-SMP ). The first part of the test is to show the the new scheduler does not impact UP/light-loaded systems and, eventually, improve its behavior. Strictly speaking I was pretty sure that the UP performance did not change because of the same code but, You know, numbers are better than any talks. The second part of the test analyzes the performance/behavior of the proposed scheduler on a 2 way SMP system. It's pretty obvious that the performance/behavior gain is going to be even higher on bigger N-SMP system ( N >= 4 ). For these tests are used tools available in Links[2] and exactly the LatSched ( cycle counter/process migration ) kernel patch, the  schedcnt  program to collect LatSched samples, lat-sched to simulate in-Icache scheduler timings and my favourite/high tech  cpuhog  software to create CPU bound tasks. The first test sample the scheduler while it's stressed by the  lat-sched  tool that creates a bunch of processes ( clone() ) and makes them switch using sys_sched_yield() under different values of cache drain size.

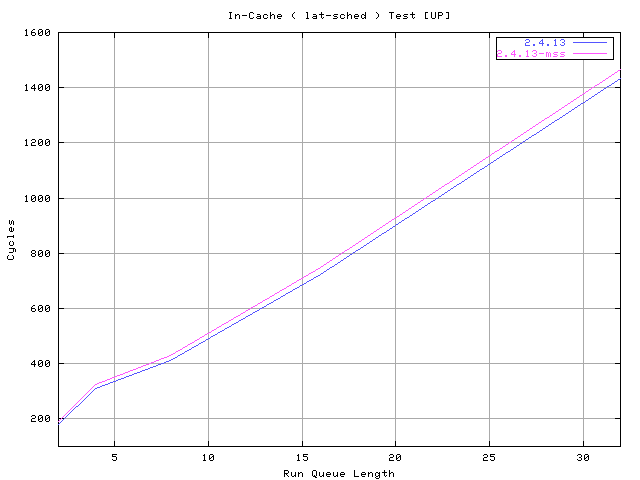

The test is run with :

# schedcnt --ttime 12 -- lat-sched --ttime 20 --size S --ntasks N

Since different sizes S did not change the overall picture I'll report only the one with zero size just to show how fast is the common path with 1-2 tasks on the run queue.
The new scheduler without the "CPU history" evaluation perfom exactly like the old one and the very small noise on the measure is sufficent to keep results not distinguishable. The "CPU history" evaluation add a few cycles to the fast path but 1) these are vanishing when a real world switch test is done ( see next test) 2) the better behavior it gives ( see other test ) fully justify its presence.

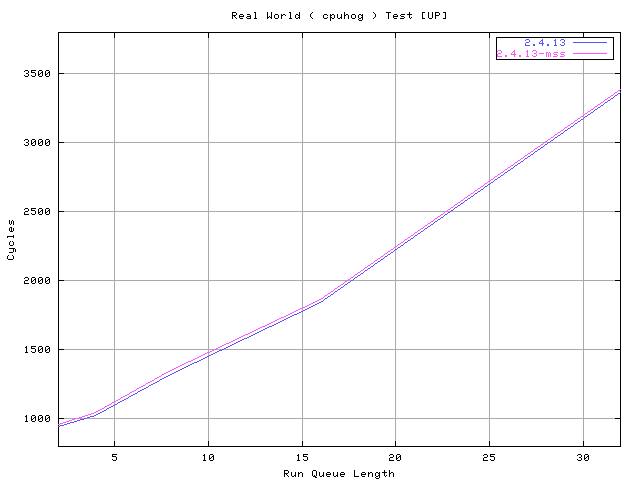

With the next test a real world switching test is done by measuring, through the cycle counter, the scheduler timings with different run queue loads ( thanks to  cpuhog ) :

# shcedcnt --ttime 30 -- cpuhog --ttime 40 --size S --ntasks N

This test basically loads the run queue with  cpuhog  and sample the scheduler cycles when dealing with my machine tasks switches. The same number/type of processes that are run and the high number of samples ( > 8000 ) collected are enough to stabilize the measure ( five samples, minor / major out, average of three ). Comparing this test with the previous one the cost of cache footprints and TLB flushing are evident. The number of cycles spent by the scheduler is about 3-4 times the one measured with the previous test. Even this test shows basically the same results when comparing the current with the proposed scheduler.

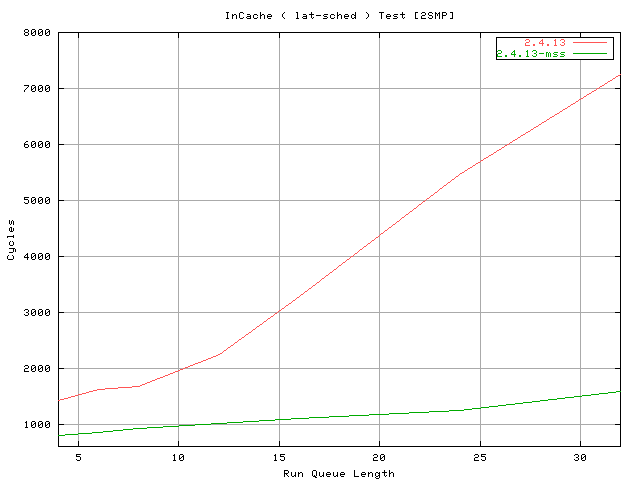

The next test run with the command :

# schedcnt --ttime 12 -- lat-sched --ttime 20 --ntasks N

compare the performance of the current and the proposed scheduler on my dual PIII 733 256Mb RAM machine. The first time I ran the test I thought to have screwed up something so I ran it again, again and again, checking the full dump of  schedcnt. Three factors comes into play to explain this kind of performance improvement 1) the run queue splitting cut the cost of the goodness() loop 2) the removal of the runqueue_lock in favor to CPU local locks make the schedule() code execution asynchronous 3) the removal of the reschedule_idle() from __schedule_tail() that is always called during this test because the scheduled test status is always TASK_RUNNING. The reason I started from a run queue length of 4 is because  lat-sched  uses sys_sched_yield() to switch and this, in the latest kernels, has an optimization that avoid setting need_resched under low run queue length.


The next test is to show the effect of the "CPU history" weight on the scheduler behavior using the classical example of the couple of CPU bound tasks with the keyboard ticking. The test is run with :

# schedcnt --time 4 -- cpuhog --time 8 --ntasks 2

This is the sample output that I get from my Athlon machine with the current scheduler ( CPU bound tasks are 906 & 907 ) :


CYSTART	CYEND	SCHCY	PID	PRUN
349876575364	349876602805	27441	907	29589992	<<<
349906165356	349906165829	473	2	5829
349906171185	349906171706	521	906	20197311
349926368496	349926370256	1760	748	14835
349926383331	349926384174	843	807	13301
349926396632	349926397786	1154	809	142885
349926539517	349926541394	1877	810	118519
349926658036	349926658951	915	811	117994
349926776030	349926777235	1205	786	10647
349926786677	349926787473	796	907	15178469
349941965146	349941966201	1055	2	8495
349941973641	349941973993	352	907	24373097
349966346738	349966347192	454	906	11417181
349977763919	349977764499	580	2	4655
349977768574	349977768873	299	906	18564042
349996332616	349996358560	25944	906	18046874	<<<
350014379490	350014380000	510	2	4834
350014384324	350014384717	393	907	35020619
350049404943	350049405243	300	2	4396
350049409339	350049410030	691	906	35913388
350085322727	350085322985	258	2	4145
350085326872	350085327224	352	906	10960739
350096287611	350096288169	558	907	19989164

The lines marked with <<< are where the scheduler falls in the recalculation loop whose cost, in this environment, is about 25000 cycles ( schedule + recalc ). It's clear the swapping done by the keventd task ( PID == 2 ) on the CPU bound tasks ( 906 & 907 ). This is the same test run on the same system with the proposed implementation
and the "CPU history" active :


CYSTART	CYEND	SCHCY	PID	PRUN
144122652482	144122679190	26708	846	13991469	<<<
144136643951	144136644317	366	2	4463
144136648414	144136648791	377	846	35796349
144172444763	144172445286	523	2	4626
144172449389	144172449724	335	846	10175255
144182624644	144182625060	416	847	26318489
144208943133	144208943722	589	2	4731
144208947864	144208948177	313	847	33648818
144242596682	144242623219	26537	847	59972040	<<<
144302568722	144302569336	614	2	6388
144302575110	144302575613	503	846	13212070
144315787180	144315787506	326	2	4370
144315791550	144315791827	277	846	36511145
144352302695	144352303222	527	2	4628
144352307323	144352307612	289	846	10233439
144362540762	144362567004	26242	846	24886389	<<<
144387427151	144387427811	660	2	4752
144387431903	144387432241	338	846	35080899
144422512802	144422513179	377	847	715629
144423228431	144423229017	586	2	4679
144423233110	144423233404	294	847	35796611
144459029721	144459030024	303	2	4440
144459034161	144459034651	490	847	23451401

It's even here clear that the two CPU bound tasks ( 846 & 847 ) are still interrupted by the I/O bound one ( keventd ) but there's no priority inversion and the interrupted task is picked up again to run in the hope of a convenient cache image finding. The next test shows the behavior of the current scheduler and its attitude to move tasks between CPUs generating way too many process moves. The following test is done on my dual PIII machine with the current scheduler running using the command :

# schedcnt --time 4 -- cpuhog --time 8 --ntasks 2


CYSTART	CYEND	SCHCY	PID	PRUN
[CPU#0]
48929327333	48929328366	1033	687	1838865
48931166198	48931172609	6411	687	43978613
48975144811	48975146639	1828	688	73297834
49048442645	49048447977	5332	688	43978737
49092421382	49092423347	1965	689	65968023
49158389405	49158394685	5280	689	43978732
49202368137	49202370092	1955	687	65968039
49268336176	49268341244	5068	687	43978726
49312314902	49312316802	1900	688	65968029
49378282931	49378288207	5276	688	43978731
49422261662	49422263672	2010	689	65968034
49488229696	49488234692	4996	689	43978715
49532208411	49532210380	1969	687	65968045
49598176456	49598181562	5106	687	43978726
49642155182	49642157104	1922	688	65968023
49708123205	49708128329	5124	688	43978726
49752101931	49752103826	1895	689	65968034
49818069965	49818075047	5082	689	43978726
49862048691	49862050525	1834	687	65968045
49928016736	49928021842	5106	687	43978715
49971995451	49971997335	1884	688	65968045
50037963496	50037968642	5146	688	43978726
50081942222	50081944155	1933	689	65968034
50147910256	50147915217	4961	689	43978715
50191888971	50191890882	1911	687	65968034

[CPU#1]
48884378625	48884391982	13357	686	160770
48884539395	48884541768	2373	688	41737542
48926276937	48926279123	2186	689	65968054
48992244991	48992251671	6680	689	43978645
49036223636	49036225826	2190	687	65968062
49102191698	49102197224	5526	687	43978698
49146170396	49146172537	2141	688	65968056
49212138452	49212143962	5510	688	43978704
49256117156	49256119089	1933	689	65968056
49322085212	49322090185	4973	689	43978704
49366063916	49366065860	1944	687	65968062
49432031978	49432037378	5400	687	43978698
49476010676	49476012703	2027	688	65968056
49541978732	49541984085	5353	688	43978704
49585957436	49585959380	1944	689	65968056
49651925492	49651931135	5643	689	43978704
49695904196	49695906223	2027	687	65968056
49761872252	49761877418	5166	687	43978704
49805850956	49805852939	1983	688	65968056
49871819012	49871824305	5293	688	43978710
49915797722	49915799715	1993	689	65968050
49981765772	49981770789	5017	689	43978704
50025744476	50025746420	1944	687	65968056

Now the CPU bound tasks are 687, 688 and 689 and the current scheduler keeps swapping them between the two CPUs. Let's see the same test, on the same machine, with the proposed scheduler running :

CYSTART	CYEND	SCHCY	PID	PRUN
[CPU#0]
218723461722	218723466324	4602	690	4867536
218728329258	218728331618	2360	690	15921370
218744250628	218744251994	1366	2	6157
218744256785	218744257526	741	690	28058989
218772315774	218772317862	2088	690	43986596
218816302370	218816304297	1927	690	43986613
218860288983	218860290894	1911	690	43986630
218904275613	218904277463	1850	690	43986629
218948262242	218948264203	1961	690	43986624
218992248866	218992250712	1846	690	43986613
219036235479	219036237462	1983	690	43986624
219080222103	219080223926	1823	690	43986624
219124208727	219124210638	1911	690	43986635
219168195362	219168197191	1829	690	43986624
219212181986	219212183952	1966	690	43986613
219256168599	219256170527	1928	690	43986635
219300155234	219300157134	1900	690	43986616
219344141850	219344143687	1837	690	43986621
219388128471	219388130404	1933	690	43986624
219432115095	219432116918	1823	690	43986624

[CPU#1]
218705750104	218705751979	1875	688	17704450
218723454554	218723460984	6430	689	7331208
218730785762	218730789304	3542	689	43986195
218774771957	218774772941	984	688	43986602
218818758559	218818761210	2651	688	43986635
218862745194	218862746086	892	689	43986624
218906731818	218906734442	2624	689	43986624
218950718442	218950719244	802	688	43986630
218994705072	218994707663	2591	688	43986596
219038691668	219038692499	831	689	43986646
219082678314	219082680891	2577	689	43986635
219126664949	219126665664	715	688	43986613
219170651562	219170654115	2553	688	43986630
219214638192	219214638990	798	689	43986607
219258624799	219258627299	2500	689	43986635
219302611434	219302612128	694	688	43986635
219346598069	219346600617	2548	688	43986624
219390584693	219390585486	793	689	43986613
219434571306	219434573905	2599	689	43986602
219478557908	219478558654	746	688	43986646
219522544554	219522547074	2520	688	43986624

In this case the scenario is significantly improved with one task sticked on one CPU and the other two sharing the remaining CPU.



To be continued ...




[Patches]

Scheduler:
    xsched-2.4.13-0.10.diff

Scheduler + LatSched:
    xsched+lats-2.4.13-0.11.diff



[Links]

1) Linux Kernel:
    http://www.kernel.org/

2) My Linux Scheduler Stuff Page:
    http://www.xmailserver.org/linux-patches/lnxsched.html

3) Linux Scheduler Scalability:
    http://lse.sourceforge.net/scheduling
